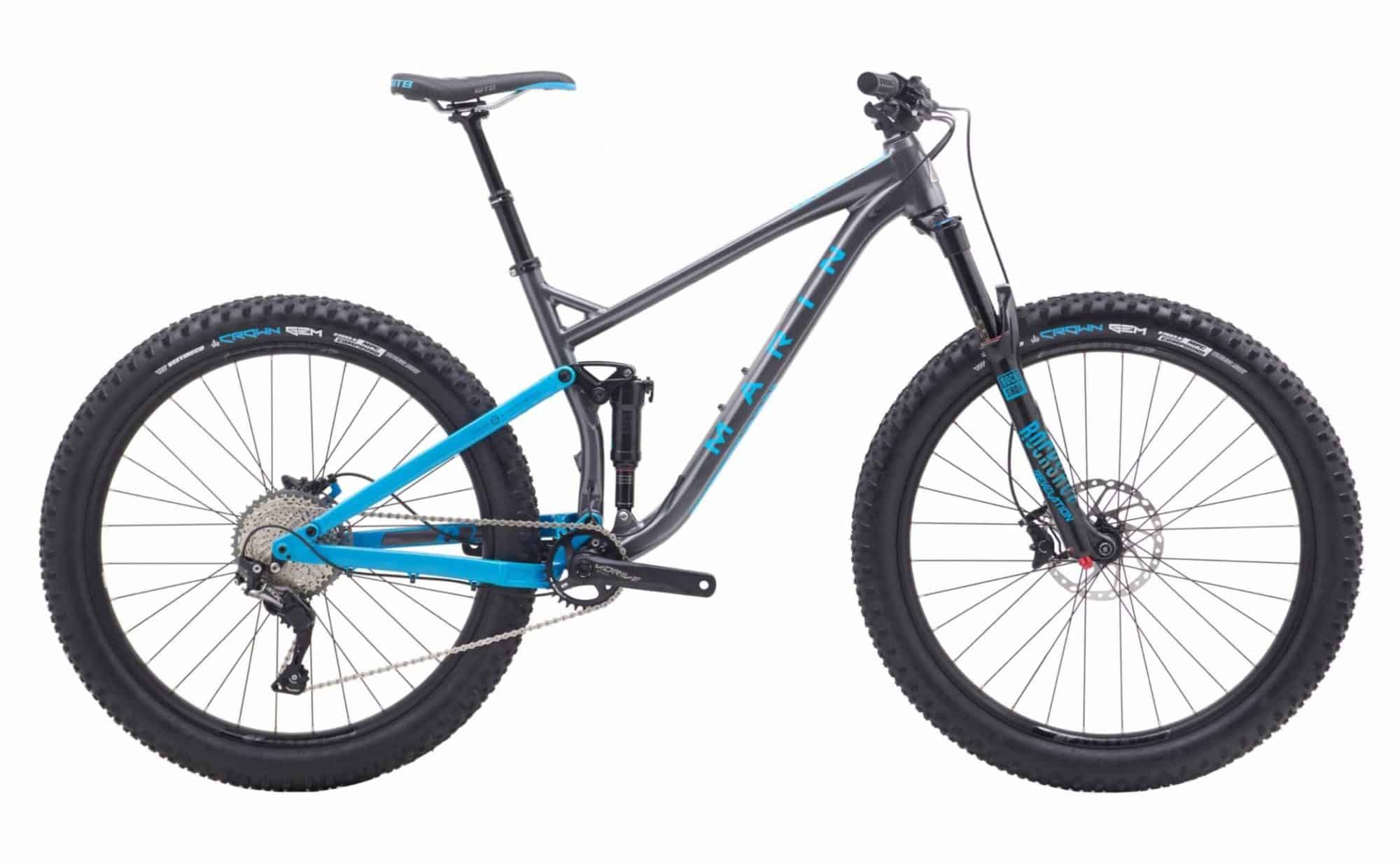

B-17 2

Specifications

Frameset
  • Frame
    Series 3 6061 Aluminum Frame, 27.5+” Wheels, 120mm Travel MultiTrac Suspension Platform, Seatstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle **Compatible w/ 29"
  • Fork
    RockShox Revelation RC 27.5+, 130mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
Drivetrain
  • Rear Derailleur
    Shimano RD-M7000, SLX GS, Direct Attachment, 11-Speed
  • Shifter
    Shimano SL-7000R 1x11-Speed
  • Crank
    FSA V-Drive, Modular 1x, 30T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
  • Bottom Bracket
    External Sealed Cartridge Bearings
  • Chain
    KMC X11 Extra Light
Components
  • Brakes
    Shimano MT500 Hydraulic Disc Shimano MT500 Hydraulic Disc
  • Rotors
    160mm Rotor
180mm Rotor
  • Seatpost
    TranzX Dropper Post, YSP12 w/ 1x Remote, Size S 100mm Travel, All Other Sizes: 125mm Travel
  • Saddle
    WTB Volt Comp
  • Handlebar
    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
  • Stem
    Marin 3D Forged Alloy, 45mm
  • Grips
    Marin Single Clamp Locking
  • Headset
    FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Wheels
  • Wheels
    Marin Aluminum Double Wall, 38mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
  • Hubs
    Formula, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H Formula, 110x15mm, Centerlock Disc, 32H
  • Tires
    Schwalbe, Nobby Nic, 27.5 x 2.8", Addis Compound, Performance Line
More Info
Mountain bike pricing and specifications are ever changing. This info was last updated August 16, 2021.
